Upgrading an existing electronic plastic-case circuit breaker is a task that requires careful consideration and a systematic approach. As a supplier of electronic plastic-case circuit breakers, I have witnessed firsthand the importance of ensuring that these crucial electrical components are up-to-date and functioning optimally. In this blog post, I will guide you through the process of upgrading an existing electronic plastic-case circuit breaker, providing you with valuable insights and practical tips to make the process as smooth as possible.
Understanding the Need for Upgrade
Before embarking on the upgrade process, it is essential to understand why an upgrade is necessary. There are several reasons why you might consider upgrading your existing electronic plastic-case circuit breaker. Firstly, technological advancements have led to the development of more efficient and reliable circuit breakers. Newer models often come with enhanced features such as improved protection capabilities, better monitoring functions, and increased durability. Upgrading to a newer model can significantly enhance the safety and performance of your electrical system.
Secondly, changes in electrical codes and regulations may require you to upgrade your circuit breaker. Electrical codes are regularly updated to ensure the safety of electrical installations. If your existing circuit breaker does not meet the current code requirements, you may need to upgrade it to avoid potential safety hazards and legal issues.
Lastly, an aging circuit breaker may start to show signs of wear and tear, such as frequent tripping, overheating, or malfunctioning. These issues can indicate that the circuit breaker is no longer functioning properly and needs to be replaced. Upgrading to a new circuit breaker can prevent electrical failures and ensure the continuous operation of your electrical system.
Assessing the Existing Circuit Breaker
The first step in upgrading an existing electronic plastic-case circuit breaker is to assess its current condition and specifications. This involves gathering information about the circuit breaker, such as its make, model, rating, and installation date. You can usually find this information on the circuit breaker's nameplate or in the electrical system documentation.
Once you have gathered the necessary information, you need to evaluate the performance of the circuit breaker. This can be done by conducting a visual inspection and testing the circuit breaker using appropriate testing equipment. During the visual inspection, look for any signs of damage, such as cracks, burns, or corrosion. Check the connections to ensure they are tight and secure. Testing the circuit breaker involves measuring its electrical parameters, such as voltage, current, and resistance, to ensure that it is functioning within the specified limits.
Based on the assessment results, you can determine whether the existing circuit breaker can be repaired or if it needs to be replaced. If the circuit breaker is severely damaged or outdated, it is usually recommended to replace it with a new one. However, if the circuit breaker has minor issues that can be easily repaired, such as loose connections or worn-out contacts, you may be able to repair it instead of replacing it.
Selecting the Right Replacement Circuit Breaker
Once you have decided to replace the existing circuit breaker, the next step is to select the right replacement circuit breaker. There are several factors to consider when selecting a replacement circuit breaker, including its rating, type, and compatibility with your electrical system.
The rating of the circuit breaker refers to its maximum current-carrying capacity and voltage rating. It is important to select a circuit breaker with a rating that is appropriate for your electrical system. If the circuit breaker rating is too low, it may trip frequently, causing disruptions to your electrical system. On the other hand, if the circuit breaker rating is too high, it may not provide adequate protection for your electrical system.

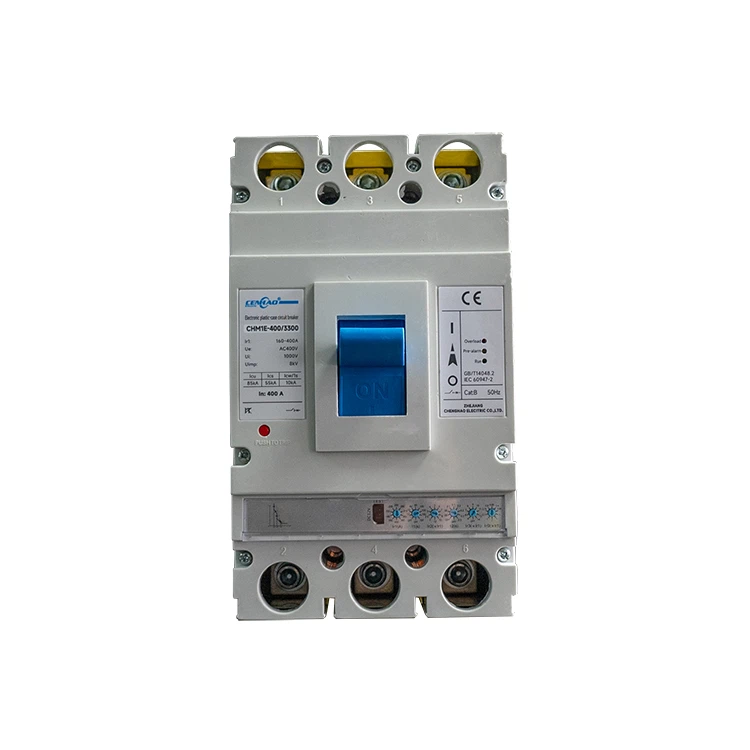

There are several types of circuit breakers available, including Electronic Breaker, Thermal Circuit Breaker, and Solid State Circuit Breaker. Each type of circuit breaker has its own advantages and disadvantages, and the choice of circuit breaker depends on your specific application and requirements. For example, electronic circuit breakers are known for their fast response time and precise tripping characteristics, making them suitable for applications where high-speed protection is required. Thermal circuit breakers, on the other hand, are more commonly used in residential and commercial applications due to their simplicity and reliability.
Compatibility is another important factor to consider when selecting a replacement circuit breaker. The replacement circuit breaker must be compatible with your electrical system in terms of its physical dimensions, mounting style, and electrical connections. It is recommended to consult with a qualified electrician or electrical engineer to ensure that the replacement circuit breaker is compatible with your electrical system.
Preparing for the Upgrade
Before installing the new circuit breaker, it is important to prepare for the upgrade. This involves gathering the necessary tools and materials, such as a screwdriver, pliers, wire strippers, and electrical tape. You also need to ensure that you have the correct replacement circuit breaker and that it is in good condition.
It is important to follow all safety precautions when working with electrical systems. This includes wearing appropriate personal protective equipment, such as safety glasses and gloves, and ensuring that the power is turned off before starting any work. You should also label all the wires and connections to ensure that they are correctly reconnected after the upgrade.
Installing the New Circuit Breaker
Once you have prepared for the upgrade, you can proceed with installing the new circuit breaker. The installation process may vary depending on the type and model of the circuit breaker, but the general steps are as follows:
- Turn off the power: Before starting any work, turn off the power to the electrical system at the main circuit breaker or fuse box. This will prevent electrical shock and ensure your safety.
- Remove the old circuit breaker: Use a screwdriver to remove the screws holding the old circuit breaker in place. Carefully pull the old circuit breaker out of the panel, making sure not to damage the wires or connections.
- Install the new circuit breaker: Insert the new circuit breaker into the panel, aligning it with the mounting holes. Use a screwdriver to tighten the screws and secure the circuit breaker in place.
- Connect the wires: Connect the wires to the new circuit breaker, following the wiring diagram provided by the manufacturer. Make sure to tighten the connections securely to prevent loose wires and electrical arcing.
- Turn on the power: Once all the wires are connected, turn on the power to the electrical system at the main circuit breaker or fuse box. Test the new circuit breaker by turning on the electrical devices connected to it and checking for proper operation.
Testing and Commissioning
After installing the new circuit breaker, it is important to test and commission it to ensure that it is functioning properly. This involves conducting a series of tests to verify the performance of the circuit breaker, such as insulation resistance testing, contact resistance testing, and tripping time testing.
Insulation resistance testing is used to measure the resistance of the insulation between the conductors and the ground. A high insulation resistance value indicates that the insulation is in good condition and that there is no leakage current. Contact resistance testing is used to measure the resistance of the contacts in the circuit breaker. A low contact resistance value indicates that the contacts are clean and in good condition. Tripping time testing is used to measure the time it takes for the circuit breaker to trip when a fault occurs. The tripping time should be within the specified limits to ensure proper protection of the electrical system.
Once the testing is complete and the circuit breaker is functioning properly, you can commission it for normal operation. This involves turning on the power to the electrical system and monitoring the circuit breaker for any signs of abnormal operation. If any issues are detected, you should immediately turn off the power and troubleshoot the problem.
Maintenance and Monitoring
After upgrading the circuit breaker, it is important to perform regular maintenance and monitoring to ensure its continued performance and reliability. This includes inspecting the circuit breaker periodically for any signs of damage or wear, such as cracks, burns, or corrosion. You should also check the connections to ensure they are tight and secure.
In addition to regular inspections, you should also perform routine testing of the circuit breaker to ensure that it is functioning properly. This includes conducting insulation resistance testing, contact resistance testing, and tripping time testing at regular intervals. By performing regular maintenance and monitoring, you can detect and address any potential issues before they become major problems, ensuring the safety and reliability of your electrical system.
Conclusion
Upgrading an existing electronic plastic-case circuit breaker is a complex task that requires careful planning, preparation, and execution. By following the steps outlined in this blog post, you can ensure that the upgrade process is carried out safely and effectively, resulting in a more efficient and reliable electrical system.
As a supplier of electronic plastic-case circuit breakers, we are committed to providing our customers with high-quality products and professional technical support. If you have any questions or need assistance with upgrading your existing circuit breaker, please do not hesitate to contact us. We will be happy to help you find the right solution for your specific needs.
