What is Air Circuit Breaker
Air Circuit Breaker (ACB) is an electrical device used to provide Overcurrent and short-circuit protection for electric circuits over 800 Amps to 10K Amps. These are usually used in low voltage applications below 450V.
-

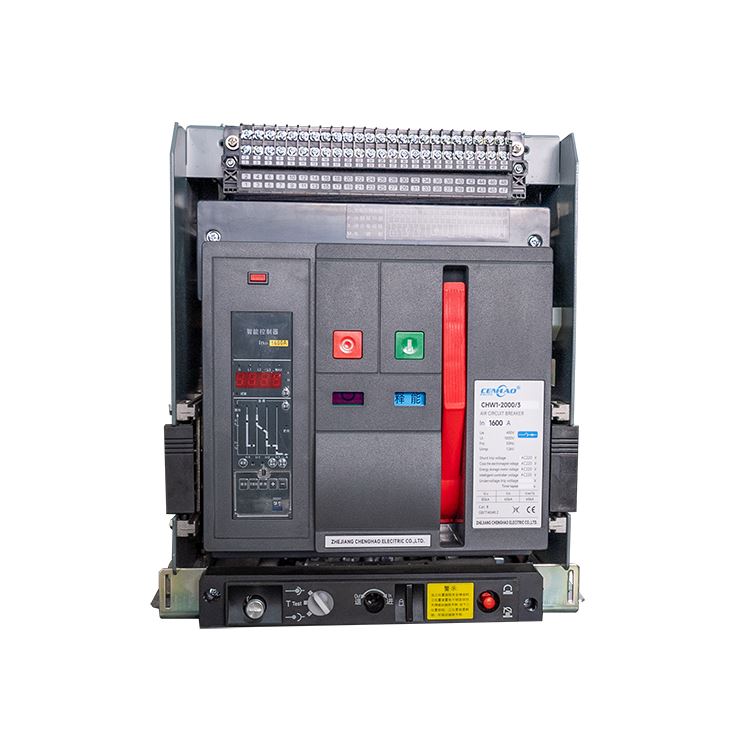

![Air Circuit Breaker]()
Air Circuit BreakerControl circuit failure: Issues in the control circuit of the ACB, such as power failure, disconnection of control lines, or failure of contactors, may prevent the ACB from closing or opening...read more
Working Principles of Air Circuit Breakers
Arc Interruption Mechanism:
High current passes through the ACB when an electrical malfunction, like a short circuit or overload, takes place. An electric arc forms between the circuit breaker’s contacts as a result of the high current. Even after the circuit breaker has tripped, the arc creates a conductive route that keeps the current flowing.
ACBs use a number of arc quenching techniques to stop this arc. The “blast effect” or “arc chute” principle is the most widely used technique. The ACB sends a high-pressure stream of air through specially constructed arc chutes when the arc is recognized. The electric arc is effectively put out by the quick air expansion in these arc chutes, which also allows the contacts to separate and stop the current flow.
Magnetic and Thermal Tripping Mechanism:
Thermo- and magnetic tripping mechanisms are built into ACBs to detect abnormal current conditions and start a circuit interruption. While the magnetic tripping mechanism reacts to short-circuit currents, the thermal tripping mechanism recognizes long-term overloads. These tripping devices activate the opening mechanism, starting the arc interruption process, when the current rises above a predetermined level.
Characteristics of Air Circuit Breaker
Air circuit breaker is widely used in power systems such as transformers, power distribution stations and industrial and mining enterprises for its high sectional capability, perfect function, small size, compact structure and excellent performance. Air circuit breaker must be maintained and maintained during daily use, so as to ensure that air circuit breaker can work well and prolong its service life.
Air circuit breaker has many protection functions to ensure the safety of power lines and electrical equipment. In the event of a serious overload or failure of the power line or electrical equipment, the air circuit breaker will immediately act to cut off the circuit, and its function is equivalent to a combination of a fuse switch and an overheating relay. In addition to the above overload protection functions, it also has under-voltage protection, short-circuit protection and other functions, which can effectively solve the problems of power equipment and power lines.
Air circuit breaker can play a control role, cut off and connect the load circuit to ensure the normal operation of electrical equipment. Air circuit breaker is compact in structure, mainly due to its reasonable structure, resulting in small size and light weight of air circuit breaker, which has no large requirement for installation area. It meets the requirements of industrial and mining enterprises, power transformer and distribution stations and other places. It can be used as a master switch and plays a control role.
Air circuit breaker uses insulating plate as protection measure on left and right sides to effectively isolate conductors and ensure safety in daily operation. All parts are placed in this frame to prevent rust and improve reliability.Reasonable coordination of components inside the frame provides different functions for air circuit breakers and constitutes an electrical switch with stable performance.
Compared with other circuit breakers, the rated current of air circuit breaker and the rated current of shell rating are higher, so the allowable current value of air circuit breaker is higher, which can be used to protect motor or to start asynchronous motor infrequently.Air circuit breakers can be protected in the event of motor failure.
Functions of Air Circuit Breaker
The primary function of an Air Circuit Breaker is to protect electrical circuits from overcurrent conditions. This can occur due to short circuits or overloads. The trip units in ACBs sense the magnitude of the current and act swiftly to interrupt the circuit when it exceeds the preset threshold.
ACBs are designed to handle short circuits effectively. When a short circuit occurs, a high current flows through the circuit. The rapid response of the ACB’s trip unit ensures that the circuit is interrupted swiftly to limit the duration and magnitude of the fault.
In addition to overcurrent and short circuit protection, many Air Circuit Breakers also provide ground fault protection. Ground faults, where current flows to the ground due to insulation failure, can be detected and swiftly addressed by the ACB to prevent damage to the electrical system.
Some advanced Air Circuit Breakers are equipped with features for load shedding and energy management. These functions help optimize the use of electrical power by selectively disconnecting non-essential loads during peak demand periods or in emergencies.
Many ACBs are now equipped with remote monitoring and control capabilities. This enables operators to monitor the status of the breaker, receive alerts for abnormalities, and even control the breaker remotely.
Key Components of Air Circuit Breaker
Contacts: The contacts in an ACB are the primary elements responsible for carrying current under normal operating conditions. When a fault occurs, the trip mechanism activates and the contacts separate, creating an arc. The design and material of the contacts are chosen to withstand the high temperatures and electrical stresses during arc formation.
Arc Chutes: Arc chutes are assemblies of metal plates or grids that are strategically positioned to capture and cool the arc formed when the contacts separate. As the arc enters the arc chute, it is divided into smaller segments, which increases the surface area exposed to cooling air. This process facilitates rapid cooling and de-ionization of the arc, effectively extinguishing it and interrupting the current flow.
Trip Mechanism: The trip mechanism is a crucial component that detects fault conditions and triggers the opening of the contacts. There are typically two types of trip mechanisms: thermal and magnetic. The thermal trip mechanism uses a bimetallic strip that bends when heated by prolonged overcurrent, while the magnetic trip mechanism employs an electromagnet that reacts to high current spikes. Upon detecting a fault, the trip mechanism releases a spring-loaded system that rapidly separates the contacts.
Blowout Coils
Blowout coils are used to generate a magnetic field around the arc. This magnetic field exerts a force on the arc, driving it into the arc chute. The movement of the arc into the chute elongates and cools it, aiding in the de-ionization process. The combination of the blowout coils and arc chutes enhances the efficiency of arc extinction.
Insulating Medium (Air)
Air serves as the insulating medium in ACBs. When the contacts open and the arc forms, the surrounding air helps to cool and de-ionize the arc. Air’s natural insulating properties play a critical role in the arc extinguishing process, preventing the arc from sustaining itself and ensuring effective current interruption.
Operating Mechanism
The operating mechanism is responsible for the manual or automatic opening and closing of the breaker contacts. This mechanism includes a series of springs, levers, and linkages that provide the necessary force to move the contacts. The operating mechanism ensures that the contacts can be closed to complete the circuit and opened to interrupt the current flow when needed.
Frame and Housing
The frame and housing of an ACB provide structural support and protection for the internal components. They are designed to withstand mechanical stresses and environmental conditions. The housing also includes safety features such as interlocks and barriers to prevent accidental contact with live parts and to contain the arc within the breaker.
Best Practices for Maintenance of Air Circuit Breakers
Regular Inspections: Conduct visual inspections for signs of wear, corrosion, or damage. Check for loose connections, leaks, or excessive dirt buildup.
Cleaning: Regularly clean the breaker to remove dust, dirt, and other contaminants. Use a soft brush or compressed air to avoid damaging components.
Lubrication: Lubricate moving parts according to the manufacturer’s recommendations. This helps ensure smooth operation and prevents premature wear.
Contact Inspection: Inspect the contacts for pitting, burning, or excessive erosion. If necessary, clean or replace them.
Air System Checks: If your ACB uses compressed air, regularly inspect the air supply system for leaks, moisture, or contamination.
Functional Testing: Periodically test the breaker’s operation to ensure it trips at the correct current levels and resets properly.
Calibration: If your ACB has adjustable trip settings, ensure they are calibrated correctly.
Record Keeping: Maintain a maintenance log to track inspections, repairs, and any issues that arise.
Current Rating: The current rating of an ACB must match the maximum continuous current that the system will carry. Selecting a breaker with an appropriate current rating ensures that it can handle the load without tripping under normal operating conditions.
Short Circuit Rating: The short circuit rating, or interrupting capacity, indicates the maximum fault current that the ACB can safely interrupt. This rating must be higher than the potential fault current in the system. Properly matching this rating prevents damage to the breaker and ensures effective protection during short circuit events.
Voltage Rating: The voltage rating of the ACB should be compatible with the system's operating voltage. Using a breaker with the correct voltage rating ensures safe operation and effective insulation. ACBs are available in various voltage ratings to suit different applications, from low voltage to medium voltage systems.
Trip Characteristics: Different applications require different trip characteristics. ACBs offer adjustable trip settings, including thermal and magnetic trips, to accommodate various protection needs. Selecting the correct trip characteristics ensures that the breaker responds appropriately to overcurrent and short circuit conditions, providing effective protection without unnecessary interruptions.
Operating Environment: The environmental conditions where the ACB will be installed influence its selection. Factors such as temperature, humidity, dust, and corrosive elements need to be considered. Some ACBs are designed for harsh environments and have enhanced protection against contaminants, ensuring reliable performance in challenging conditions.
Mounting Configuration: ACBs come in different mounting configurations, such as fixed or draw-out types. The choice between these depends on the ease of maintenance, inspection, and replacement requirements. Draw-out ACBs are preferable in applications where minimal downtime and easy access are critical, while fixed ACBs may be suitable for more permanent installations.
Size and Space Requirements: The physical dimensions and weight of the ACB must be compatible with the available installation space. In applications with limited space, compact ACBs with a smaller footprint are advantageous. Ensuring adequate space for installation, operation, and maintenance is crucial for effective and safe use.
Integration with Protection System: The ACB should be compatible with other components of the protection system, such as relays, fuses, and other breakers. Proper coordination ensures selective tripping, where only the breaker closest to the fault trips, minimizing disruption to the rest of the system.
Maintenance and Serviceability: The ease of maintenance and serviceability of the ACB is an important criterion. Breakers that are easy to inspect, test, and repair reduce downtime and maintenance costs. Features like draw-out designs and modular components can enhance maintainability.
Manufacturer and Standards Compliance: Choosing an ACB from a reputable manufacturer ensures quality and reliability. Additionally, the breaker should comply with relevant industry standards and regulations, such as IEC or ANSI standards. Compliance with these standards ensures that the ACB meets the necessary safety and performance criteria.
Cost and Budget Considerations: The cost of the ACB, including the initial purchase price, installation, and long-term maintenance, should fit within the project's budget. While cost is an important factor, it should be balanced with the need for reliability, durability, and performance to ensure overall cost-effectiveness.
Remote Operation and Monitoring: For applications requiring advanced control and monitoring, ACBs with remote operation and monitoring capabilities are advantageous. These features allow for real-time supervision, quick response to faults, and integration with modern smart grid systems.
