Control Protection Switch
The Control Protection Switch Manufacturer!
Zhejiang Chenghao Electric Co., Ltd. is located in Liushi Town, Yueqing City, Zhejiang Province, Fangdouyan Industrial Zone. The company focuses on the field of high and low voltage electrical equipment industry, specializing in the production of universal circuit breaker series, plastic circuit breaker series, small circuit breaker series, AC contactor series, surge protector series, load isolation switch series, isolation knife switch series, control and protection switch series, double power automatic transfer switch series, high voltage components series and other products.
-

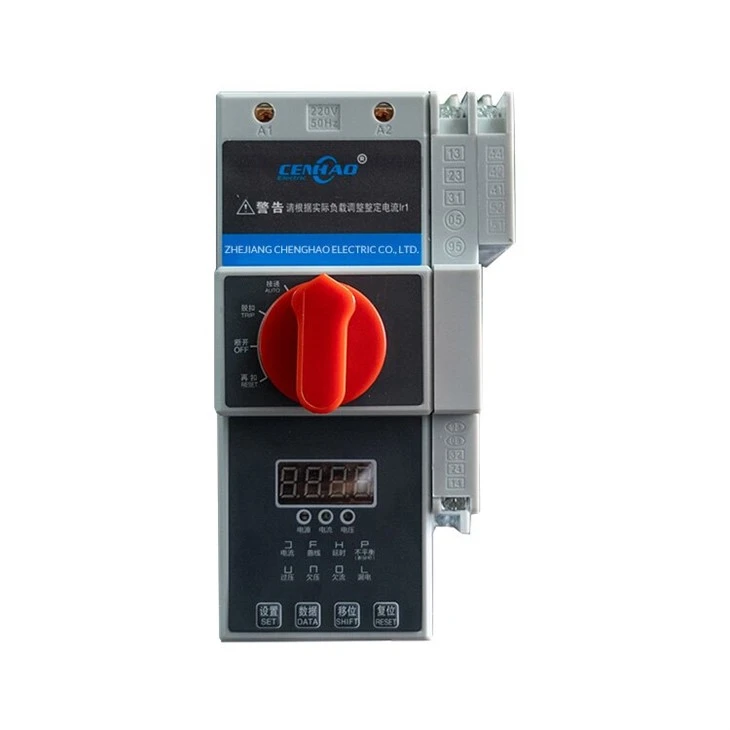

![Protective Switch]()
Protective SwitchA Protective Switch typically integrates a current sensor to monitor real-time current values in the circuit.read more
Why choose us
Rich industry experience
The company has been continuously upgraded through diversified sales products and services over the years, and has been praised by the majority of users! And enjoy a good reputation and credibility among consumers, and with a number of supporting manufacturers and agents to establish long-term stable cooperative relations.
24-Hour Service
Our dedicated 24-hour online support ensures prompt responses, providing you with an excellent shopping experience. Feel free to reach out with any questions at any time.
Fast delivery time
We have optimized production processes and supply chain management to achieve fast delivery times. With our advanced production scheduling system, we are able to accurately predict production cycles and respond quickly to order needs.
Principle Of Protective Switch
Monitoring Principle
A Protective Switch typically integrates a current sensor to monitor real-time current values in the circuit.
When the current exceeds a preset threshold, the current sensor sends a signal to trigger protective actions.
Voltage Monitoring
Similarly, a Protective Switch monitors circuit voltage values.
Abnormal voltages (such as too high, too low, or excessive fluctuations) also trigger protective actions.
Other Parameter Monitoring
Advanced Protective Switches may monitor additional parameters such as frequency, power factor, etc.
Installation and Maintenance
Installing Safety Switches
Installing safety switches should ideally be done by a qualified electrician. They are typically installed at the distribution board or electrical panel. The process involves connecting the safety switch to the outgoing circuits, ensuring that it has the capacity to monitor the electrical flow of multiple circuits simultaneously. The precise installation can vary based on the type of safety switch and the specific requirements of the electrical system.
Regular Testing and Maintenance
Safety switches require regular testing to ensure that they are in proper working condition. Most experts recommend monthly testing, which can be done by simply pressing the test button on the device. If the safety switch functions correctly, it should instantly trip, cutting off the power. If it doesn't, or if it doesn't reset after testing, it's crucial to consult an electrician for inspection and potential replacement.
Safety switches suitable for different environmental conditions
Type 1 general purpose enclosures are constructed for indoor use. They protect the equipment inside from ingress of solid foreign objects (falling dirt).
Type 3R enclosures are typically used in outdoor applicatins to provide protection against falling rain, sleet, snow and external ice formation.
Type 4 enclosures are intended for general purpose indoor or outdoor use, primarily to provide a degree of protection against windblown dust and rain, splashing water and hose-directed water, and to be undamaged by the formation of ice on the enclosure.
Type 4X enclosures, often constructed of stainless steel, are intended for indoor and outdoor use, primarily to provide a degree of protection against corrosion, windblown dust and rain, splashing water and hose-directed water; provides an additional level of protection against corrosion; and to be undamaged by the formation of ice on the enclosure.
Type 12 enclosures are constructed (without knockouts) for indoor use, primarily to provide a degree of protection against dust, falling dirt and dripping noncorrosive liquids.
Different Types of Safety Switches
Switchboard mounted
These are installed on individual circuits and are used to protect, selected electrical circuits throughout the house, plus electrical appliances and extension cords connected to the power points.
Portable safety switches
Portable safety switches are essential protective devices for people using power tools and other electrical appliances, where there is no switchboard or power point safety switches.
Power point Safety Switches
A power point switch replaces an existing power point. These switches protect appliances and power cords plugged into the switch and may also cover electrical wiring and power points on the same circuit.
Safety Protection Mechanism
Overload Protection
If the load current exceeds the rated value, the Protective Switch cuts off the circuit to prevent equipment damage due to overload.
Short Circuit Protection
A sharp increase in current during a short circuit triggers quick action by the Protective Switch to cut off the circuit, preventing serious consequences such as fire.
Undervoltage/Overvoltage Protection
Voltage abnormalities prompt protective action to maintain equipment operation within a safe voltage range.
Other Protections
Depending on application needs, the Protective Switch may include additional protections such as phase loss and leakage protection.
FAQ
As one of the most professional control protection switch manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy customized control protection switch made in China here from our factory.
